OBDSTAR iScan MERCURY MARINE Diagnostic Tool

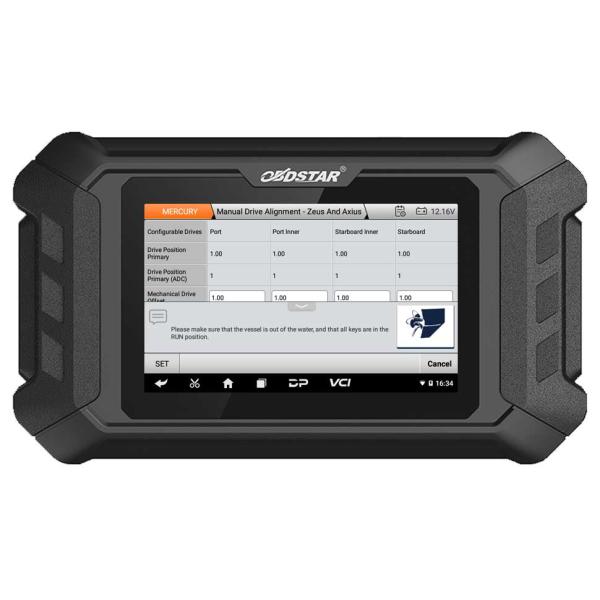

ISCAN MERCURY is a portable tablet which has super performance and industrial appearance design specialized for Mercury. It is a new generation of intelligent marine diagnostic equipment tailored for customers. Based on RK3128 quad-core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience.
Attention:
Unable to add other brands of marine softwares.
Support English only, can't change to other languages.
iScan MERCURY MARINE Functions:
1. New android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
4. Menu arbitrary selection is more convenient and quick;
5. Record and play back real-time data flow, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the internet, one-click software upgrade;
7. One-click remote function, OBDSTAR technical staff remote assistance.
Advanced Function
1. The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function(service lamp reset), basic parameters, etc., working with ISCAN to make marine diagnosis more accurately and efficiently;
2. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyse faults;
3. Support Device Configuration, Maintenance Notification Setting and other special functions.
Diagnostic support series
1. Support all models in G3, including DFI 2, Optimax, Seapro, Verado, 40HP-300HP Engines and other models;
2.The support modules include but no limited to Engines (DIESEL and Gasoline), Joystick, Lever and Helm Control Module, Lever Configuration, Service System, Thrust Vector Control Module and other modules
Additional Satellite Receiver
Audio Satellite Receiver
Autopilot
Bow Thruster
Connected Vessel Device
Diagnostic Tool
Electronic Compass
GPS Receiver
Generator
Helm Autopilot Trackpad
Helm Device Display Gauge
Helm Mercury NMEA Gateway
Helm PORT Command Control Module
Helm PORT Inner Command Control Module
Helm PORT Inner Legacy System Monitor
Helm PORT Inner System Monitor
Helm PORT Inner System Tachometer
Helm PORT Legacy System Monitor
Helm PORT System Monitor
Helm PORT System Tachometer
Helm STBD Command Control Module
Helm STBD Inner Command Control Module
Helm STBD Inner Legacy System Monitor
Helm STBD Inner System Monitor
Helm STBD Inner System Tachometer
Helm STBD Legacy System Monitor
Helm STBD System Monitor
Helm STBD System Tachometer
Helm Smart Multiplexer
Helm Steering Wheel
Helm System Speedometer
Helm Autopilot Trackpad
Helm Device 1 Display Gauge
Helm Device Display Gauge
Helm Mercury NMEA Gateway
Joystick Module
NAVMAN Gateway
PORT Engine
PORT Inner Engine
PORT Inner Thrust Vectoring Module
PORT Inner Transmission Control Module
PORT Thrust Vectoring Module
PORT Transmission Control Module
Remote Joystick Module
Replicator
STBD Engine
STBD Inner Engine
STBD Inner Thrust Vectoring Module
STBD Inner Transmission Control Module
STBD Thrust Vectoring Module
STBD Transmission Control Module
Security Device
Smart Sensor - AirMar
SmartCraft Authentication Device
Stern Thruster
Trackpad
Vessel Control Module
VesselView Link
VesselView Mobile
Aux Joystick
Cruise Interface Module
Helm PORT CCM
Helm PORT INNER CCM
Helm PORT Outer CCM
Helm STBD CCM
Helm STBD INNER CCM
Helm STBD Outer CCM
Helm PORT Inner uX
Helm PORT uX
Helm STBD Inner uX
Helm STBD uX
PORT INNER SIM
PORT Inner TCM
PORT Inner TVM
PORT Inner uX
PORT Outer Engine
PORT SIM
PORT TCM
PORT TVM
PORT uX
STBD INNER SIM
STBD Inner TCM
STBD Inner TVM
STBD Inner uX
STBD Outer Engine
STBD SIM
STBD TCM
STBD TVM
STBD uX
Function Display-(From OBDSTAR Mobile App)
1) Main Page
2) Diag Socket/Diag Connector Location
Function Display-(From ISCAN)
1) Main Page/Brand Supported
2) Data Flow Text/Waveform Diagram/Instrument Diagram

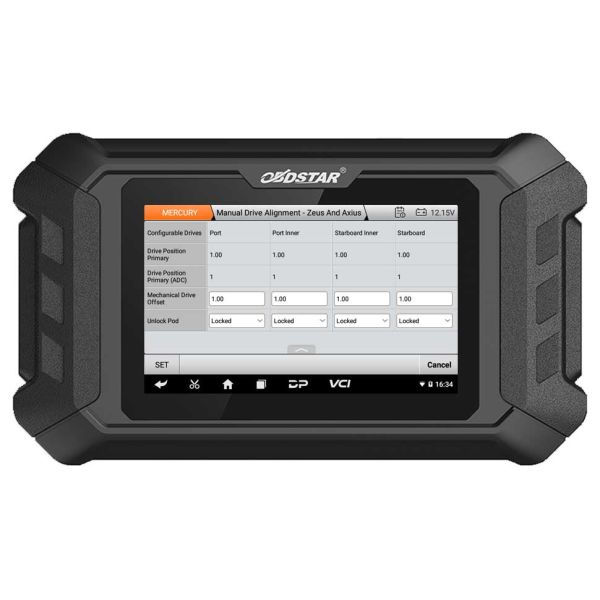

3) Special Functions

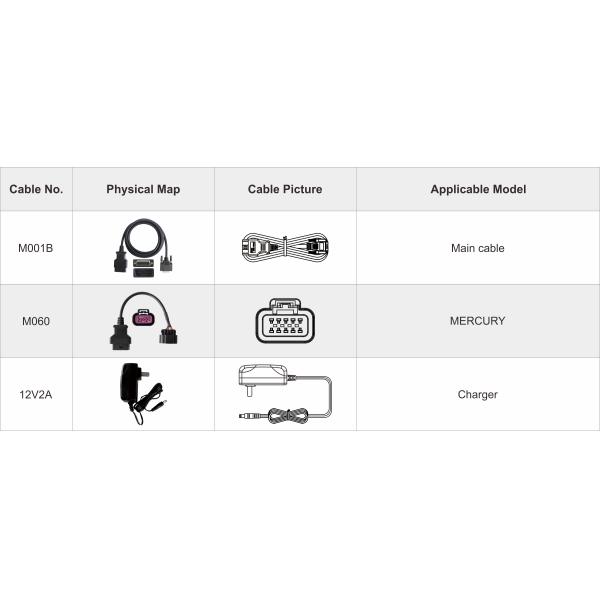

Package Includes:
1pc x Mercury main device
|
1pc x M060 MERCURY adapter cable
|
1pc x M001B main cable
|
1pc x 12V2A charger
|
