Xhorse Multi-PROG Multi Prog ECU TCU Programmer With GODIAG GT100 And ECU GPT Adapter

• 1. Bunding Package:

  Xhorse Multi Prog Pro-level ECU TCU Programmer
  GODIAG GT100 Auto Tool OBDII Break Out Box ECU Connector
  GODIAG ECU GPT Boot AD ECU Connector

• 2. Multi-Prog ECU Programmer

  is a versatile tool meticulously designed by Xhorse to access and modify crucial data stored in a vehicle's Engine Control Unit (ECU) and Transmission Control Unit (TCU). From engine maps to transmission parameters and immobilizer settings, the XDMPG0GL ECU Programmer empowers users with unprecedented control and customization.

• 3. GODIAG GT100

  can support communication detection and ECU maintenance/ diagnosis/ programming/ coding.

• 4. GODIAG ECU GPT Adapter

  can help customers read and write ECU data without disassembling the ECU using the OBD2 Bench or GTP Bench method or disassembling the ECU and using the Boot method. This product is equipped with a short-circuit-proof BOOT resistance board connection line to protect the ECU. Customers can use it with J2534 devices and PCMFLash software.

• 1.Fully Replace VVDI Prog:

  Multi-Prog support factory usage mode for batch programming of chips. In this mode, the functions of batch programming, offline programming, and file offline programming can be done easily.
  The main difference between VVDI PROG and Multi-Prog: Multi-Prog has the batch programming function but VVDI PROG programmer doesn't.

• 2. With Free MQB48 License and BMW Bench Read ISN.
• Bind with Xhorse VVDI2/ Key Tool Plus PAD account, then your VVDI2/Key Tool Plus PAD can use MQB48 Function too
• 3. Read, Write and Clone ECU
• 4. Read, Write and Clone Gearbox TCU
• 5. Read EEPROM, ECU, MCU
• 6. Read and Write ECU ISN with new ecu adapter
• 7. Supports Checksum correction for some EDC16/EDC17 ECUs (more to come)
• 8. Get free BMW ISN read function and NEC, MPC, Infineon etc chip continously update service
• 9. With built-in free MQB48 license. Bind Multi-prog and VVDI2 (full version) or key tool plus to the same Xhorse app account to use MQB48 NEC35XX function.
• 10. Free software and firmware update timely.
• 11. NEW! Add VAG MQB RH850 dashboard processor (Need Extra Xhorse XDMPR8GL MQB-RH850/V850 Adapter )
• 12. Also Compatiable with Xhorse MQB Solder-free Adapters
• 13. Can work with Xhorse Multi-Prog Exclusive Adapters 4 in 1 to extend more chip reading and writing.
• 15.Xhorse Multi-Prog Free Software Download

• Support R&W lots of chips, include MC9S08 series, MC68HC(9)12series, MC9S12series, V850series, H8Xseries, R8Cseries, PCF79XXseries and most eeprom chips etc .
• Support chip data verify, checkblank function
• Support data file compare function
• Free Pin code calculation service by Dump for various models
• Support Read and Write BMW N20, N55 ECU (show ISN directly)
• Stable Read and Write MC9S12XE series chips (5M48H/ 1N35H/ 2M53J/ 3M25J etc.)
• Support renew PCF79XX remote, currently support BMW E/F series (Please Note PCF79XX adapter is optional)
• Has the largest database of connection diagram
• Reserve Ports: For future update
• Supports Repair Porsche 12V lithium battery and BYD Lithium Battery (MC9S12XET256)
• Supports EDC17/MED17 data calculation (checksum correction)
• Support for third-party automatic HEX editing scripts
• Supports Expert mode: batch write chips. vvdi prog only write a single chip at a time

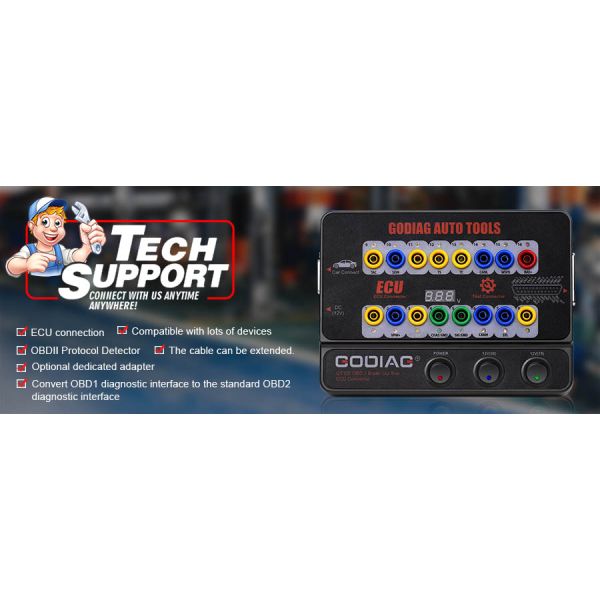

GODIAG GT100 supports communication detection and ECU maintenance/ diagnosis/ programming/ coding, will make your work more simple and easier, save your time and money.

• 1. Help Activated the dashboard or IMMO module

  for VW,Porsche,MIT and Toyota: For VW, Porsche or MIT or Toyota all key lost, you can use GT100+ OBDII Breakout Box to activate dashboard or immo module before you use other tools like Autel IM608 to do all key lost.

• 2. ECU Connection or Multiple Vehicle ECU Module Connecting:

  Conecting the single or multiple ECU control modules at the same time, GT100+ OBDII Breakout Box is good helper for programming and diagnosing.

• 3. Banana Plug Extension Connection:

  Extend the car's OBDII 16pin interface to tell you whether the OBDII interface connection is good or not, which is convenient for the test of OBDII interface voltage waveform.

• 4. Convert Obd1 Diagnostic Interface To The Standard Obd2:

  GT100+ OBDII Breakout Box Use the connector to convert the OBD1 interface into obd2 interface according to the diagnostic interface communication protocol.

• 5. The Extension Cables:

  The space of the diagnostic interface location is too narrow to connect to the diagnostic tool, or the user find that the diagnostic cable is not long enough during maintenance. It can be extended by 4.5ft.

• 6. Power The Car When Replac Battery:

  The auxiliary power supply aims at supplying power to the vehicle through GT100+ OBDII Breakout Box before replacing the battery to sustain the power supply to the vehicle.

• 7. Ship from US&UK&EU Warehouse,3-5 days arrive with Tax Free!
• 8. One Year Warranty.
• 9. Work Together with BMW CAS4 & CAS4+ Test Platform and xhorse VVDI2/Lonsdor K518/CGDI/Autel im608 Support Off-site Key Programming/All Keys Lost/ Add New Key
• 10. Work Together with BMW FEM BDC Test Platform, to program FEM BDM Keys.
• 11. Can work with the most devices to do tests, will make your operation much easier, such as xhorse vvdi2,Xhorse Multi-Prog, Autel Scanner, Launch Scanner, Vident Scanner,CG and etc.

GODIAG ECU GPT Boot AD programming adapter can help customers read and write ECU data without disassembling the ECU using the OBD2 Bench or GPT Bench method or disassembling the ECU and using the Boot method. This product is equipped with a short-circuit-proof BOOT resistance board connection line to protect the ECU. Customers can use it with J2534 devices and PCMFLash software.

• Diagnostic function supports standard OBD2 protocol equipment.
• Supports ECU reading and writing data, and supports J2534 devices.
• Only Scanmatik 2 PRO for PCMflash allows to form GPT1, GPT2 signals necessary to work with Module 71.
• Other devices Scanmatik OpenPort 2.0, Mongoose JLR, MongoosePro JLR,
• Teradyne GNA600 (VCM 1), Mazda VCM 2 supports OBD2 or BOOT 53 mode to read and write ECU data.

• 1pc x Multi-PROG
• 1pc x USB Cable
• 1pc x Power Adapter (15V 4A)
• 1pc x 220V Power Cord
• 1pc x VH13 Interface Adapter Board
• 1pc x VH20 Interface Adapter Board
• 1pc x VH23 Interface Adapter Board
• 1pc x MCU Adapter Multi-PROG Solder Cable
• 1pc x MCU DB15 Adapter Cable
• 1pc x ECU Adapter Multi-PROG Solder Cable
• 1pc x ECU DB15 Adapter Cable
• 1pc x Multi-PROG OBD Cable
• 1pc x USB WIFI Network Card
• 1pc x Product Manual
• 1pc x Certificate Of Conformity
• 43pcs x ECU Cable Plugs
• 1pc x GT100Host
• 1pc xOBD 2-in-1 extension cable
• 1pc xColored jumper cable
• 1pc xPower supply 12V
• 1pc xResistance 120 ohm
• 6pcs xBanana plug
• 24pcs xWire accessories, Dupont 2.54mm connector female pins
• 1pc x GODIAG ECU GPT Boot AD Programming Adapter
• 1pc x OBD2 to DB25 Cable
• 8pcs x Soft Silicone Wires
